Nanlux Four-light Frame for Matrix 2500

NANLUX Four-light Frame for Matrix 2500

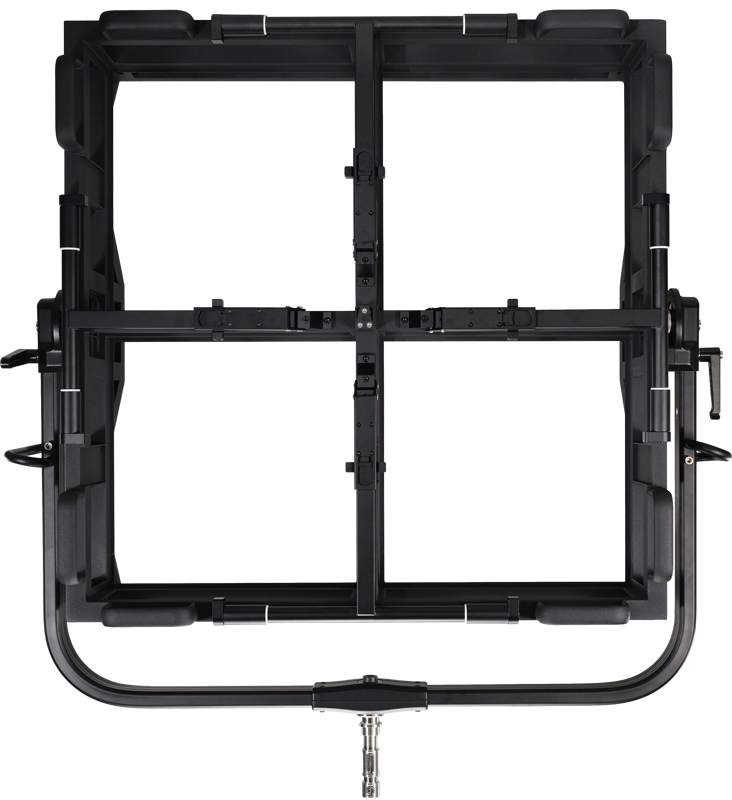

The frame is equipped with a multi-point locking mechanism that enables quick installation and removal of the fixtures. The design also prevents a fixture from falling if a single locking point is accidentally released, enhancing safety in suspended mounting applications.

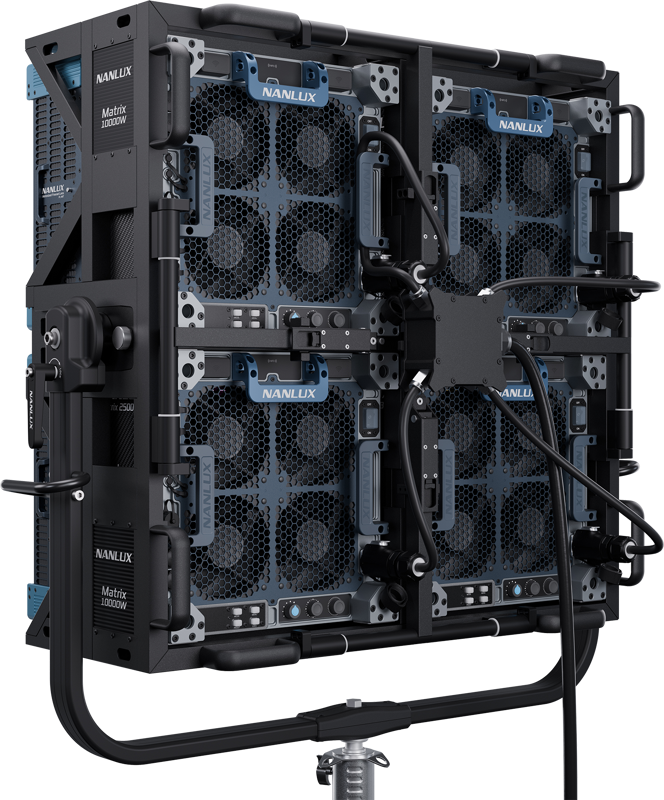

The included 4-way power distribution cable allows all four fixtures to be connected to a single power outlet, helping to optimize cable management and simplify installation.

In addition, the included EXT port cables allow the fixtures within the frame to be interconnected, enabling synchronized control across all lights.

Compatible with

• Matrix 2500B
• Matrix 2500C

Dimensions

• Matrix 2500 Four-Light Frame: 892 × 892 × 409 mm (35.12 × 35.12 × 16.10 in)
• Four-Light Frame Bracket: 1140 × 850 × 166 mm (44.88 × 33.46 × 6.54 in)
• CB-MT25-63A-1/4 4-Way Power Distribution Cable with 3 m 63A CEE Plug: 3 m (118.11 in)
• EXT Port Cable: 0.6 m (23.62 in)

Weight

• Matrix 2500 Four-Light Frame: 22.38 kg (49.34 lb)
• Four-Light Frame Bracket: 7.09 kg (15.63 lb)
• CB-MT25-63A-1/4 4-Way Power Distribution Cable with 3 m 63A CEE Plug: 4.81 kg (10.61 lb)
• EXT Port Cable: 35 g (0.08 lb)

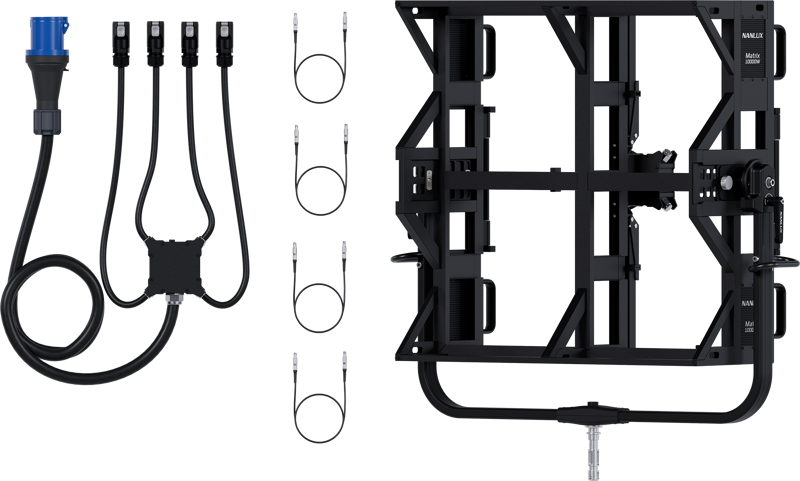

Package Contents (200–240 V Regions)

• Matrix 2500 Four-Light Frame × 1
• Four-Light Frame Bracket × 1
• CB-MT25-63A-1/4 4-Way Power Distribution Cable with 3 m 63A CEE Plug × 1
• EXT Port Cable × 4
• User Manual × 1
