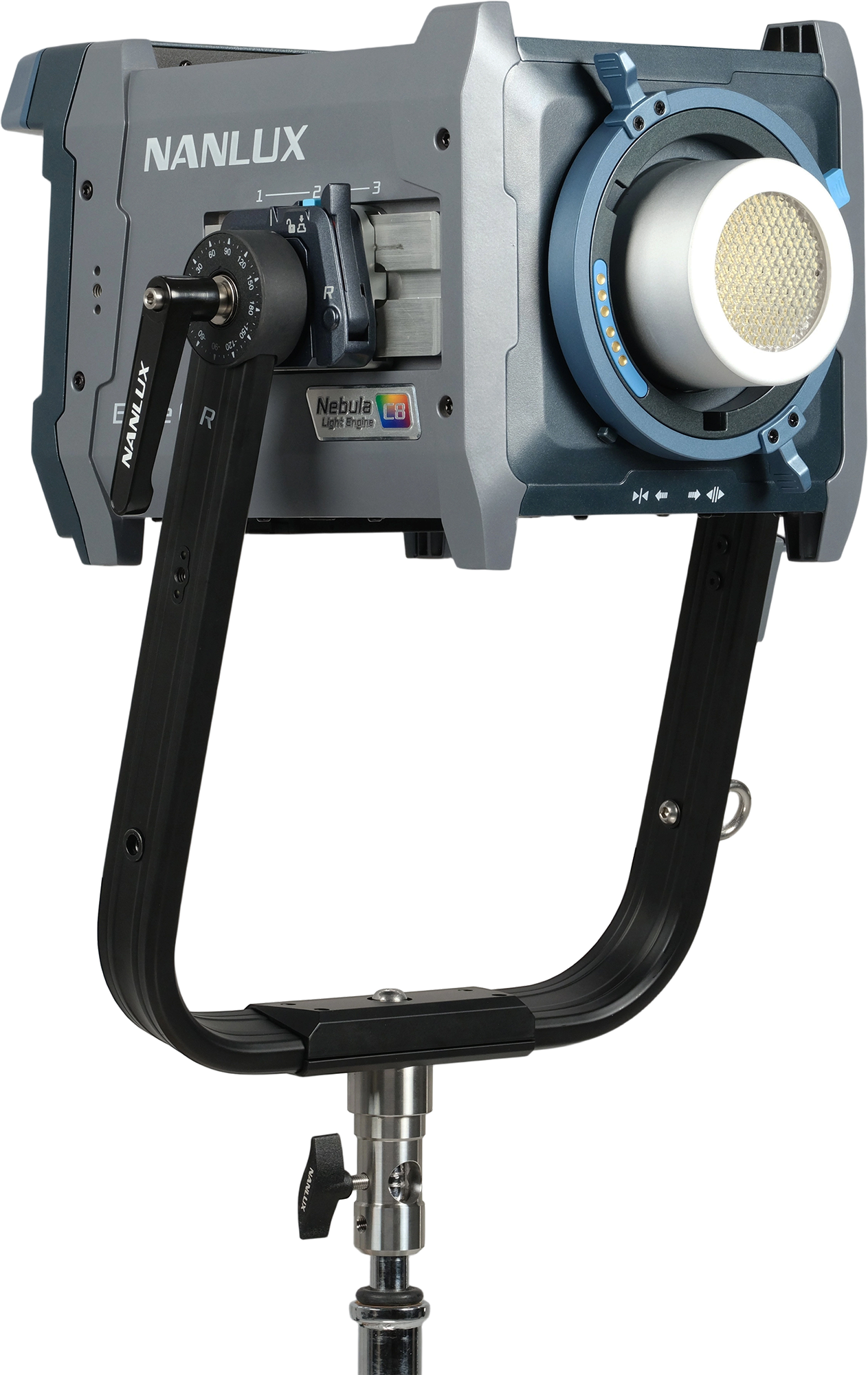

Nanlux Evoke 600C LED Full-color Spot Light with trolley case

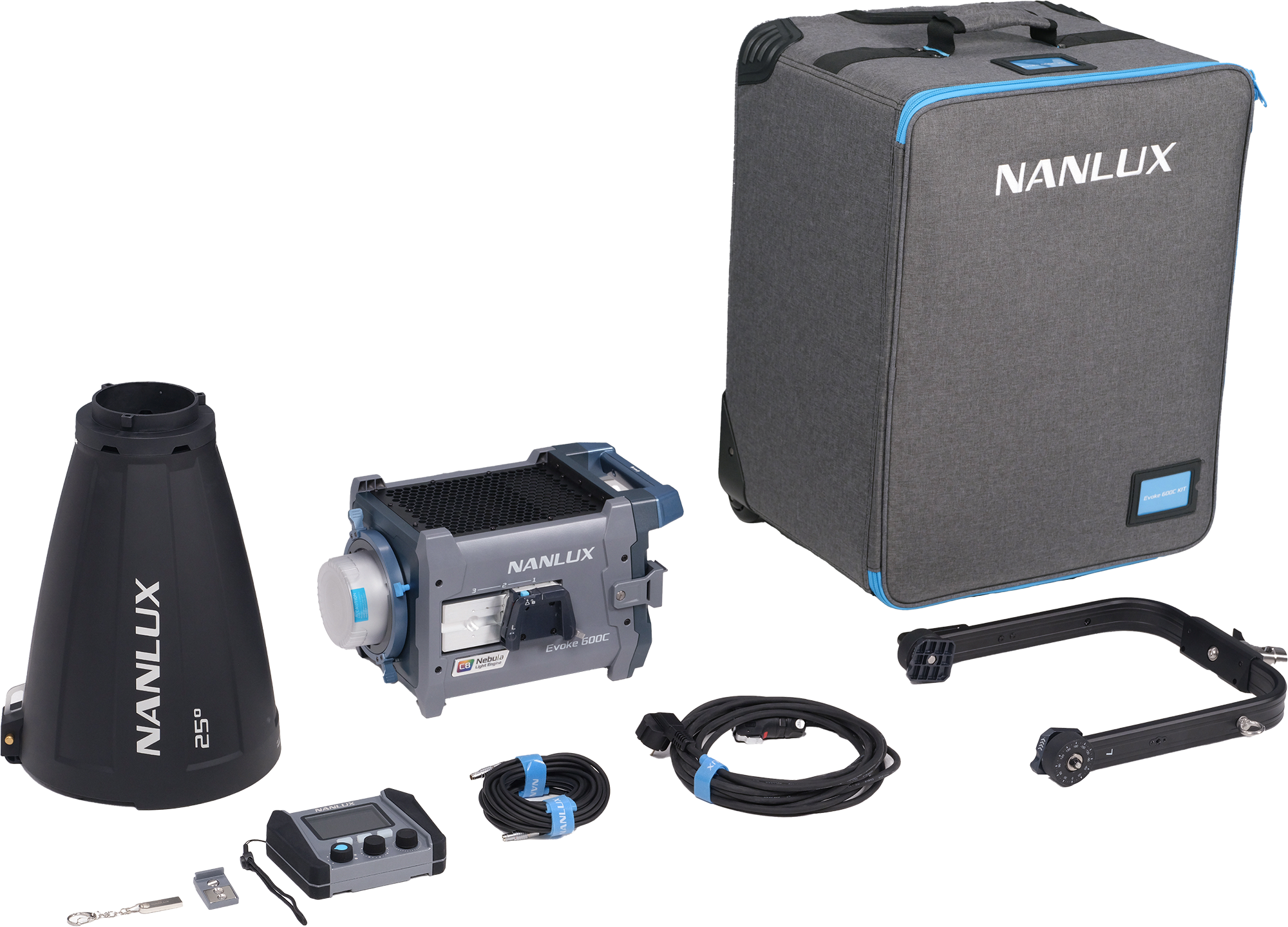

The Nanlux Evoke 600C kit pairs Nanlux’s full-color point source spot light with a trolley case, so the fixture arrives ready to travel between film, broadcast and event locations. Built around the Nebula C8 Color Light Engine, it gives productions accurate color and high output in a single, self contained kit.

Nebula C8 color engine and output

The Evoke 600C runs on the same Nebula C8 8 chip light engine as the Matrix series, combining deep red, red, amber, lime, green, cyan, blue and indigo LEDs. As a result, the fixture reaches a CCT range of 1000K to 20000K, with green/magenta adjustment of +/-200 across the full range, plus CCT, HSI, RGBW, XY Coordinates, Gel and Effect modes. CRI and TLCI both reach 98, so skin tones and mixed light sources stay accurate on camera. Rated at 600W with a 65 degree beam angle bare, the fixture dims smoothly from 0% to 100% in 0.1% steps, which gives operators fine control for both bright exteriors and low key interior scenes.

BE mount and accessories

The Evoke 600C introduces Nanlux’s BE mount which adds electronic contacts that auto recognize accessories, correct color shifts and power a motorized Fresnel lens. Because of this, reflectors and modifiers connect without extra cabling, which speeds up changeovers between setups.

Built for the road

An IP66 rated housing protects the 7.26kg fixture from rain, heat and dust, and the included trolley case keeps it, along with the yoke and reflector, organized between jobs. The complete footprint includes the fixture at 7.26kg, a yoke at 1.02kg and the BE mount reflector at 1.654kg, light enough for one person to rig without special equipment. Control runs through on-board buttons, a wired controller, the NANLINK App, a remote controller, DMX/RDM, LumenRadio CRMX, Art-Net/sACN or NFC, so the Nanlux Evoke 600C kit fits crews that mix manual and networked setups on the same production. See the full Evoke range or everything we offer from Nanlux.
